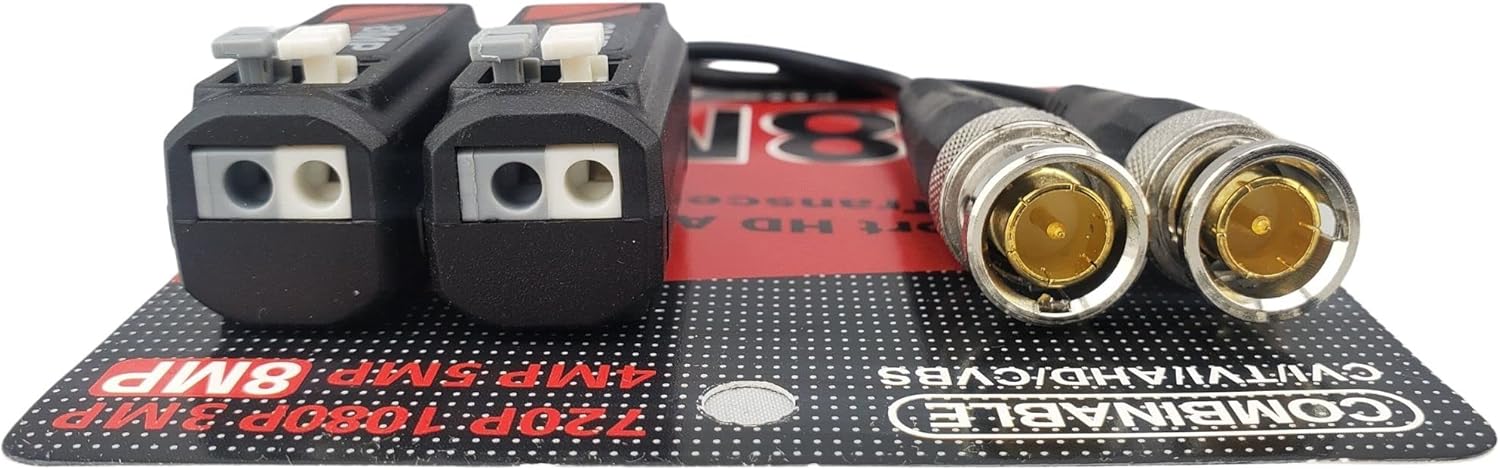

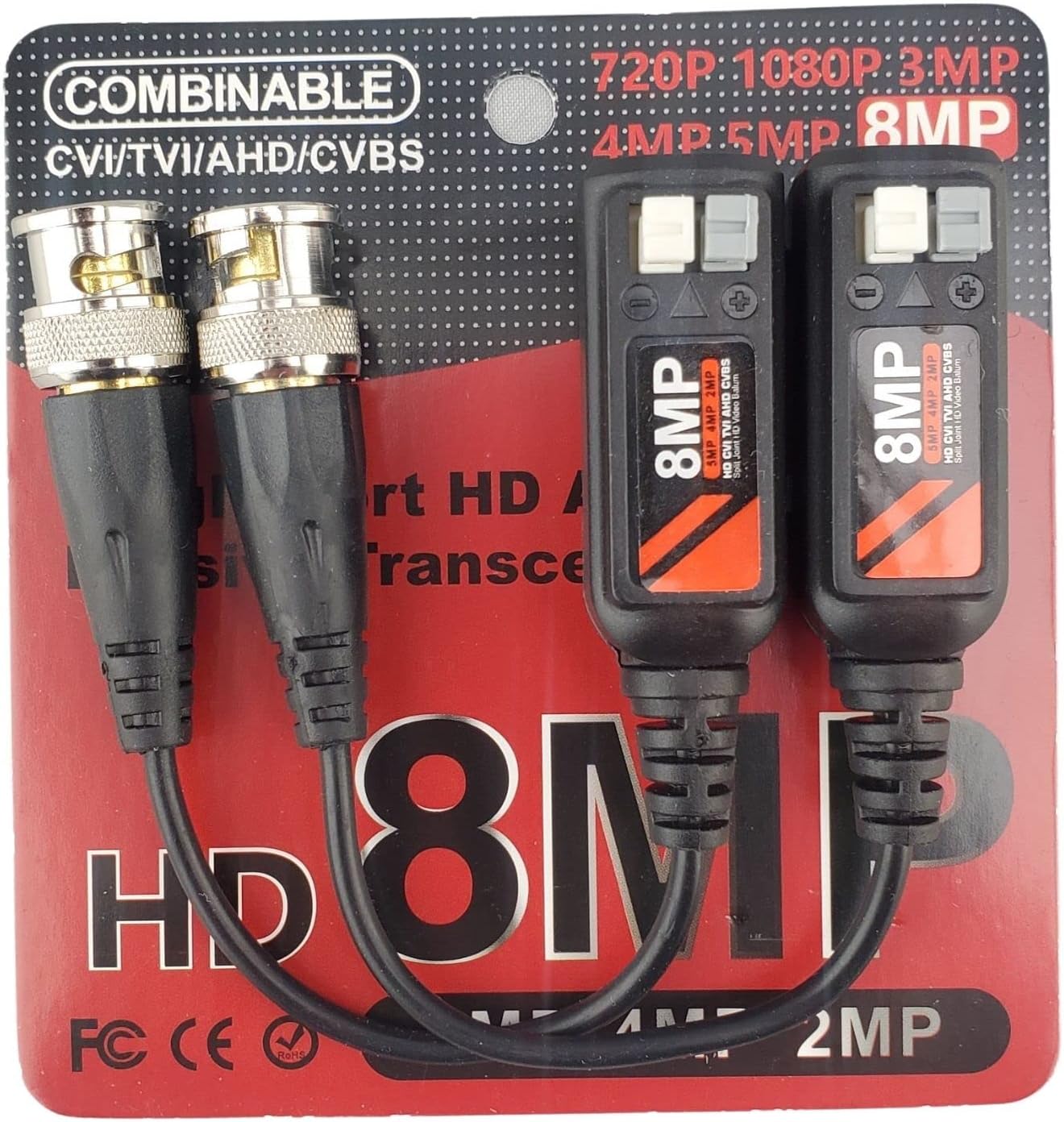

Evertech 10 Pairs 8MP / 4K Passive CCTV Video Balun UTP BNC Cat5 Transceiver Securtiy Surveillance Camera Installation

Compatible format: AHD, TVI, CVI, Analog (CVBS) Frequency response: DC to 8 Mhz Impedance: BNC: 75 ohms Category Type: Cat5e/Cat6 suggested Compact size and easy installation Innovative combinable design Package Includes: 10 Pairs of 8MP 4K Passive HD BNC Video Balun Transceiver Transmitter AHD/TVI/CVI/CVBS Cable Connectors for 720P/960P/1080P/3MP/5MP/8MP CCTV Security Cameras

• Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver.

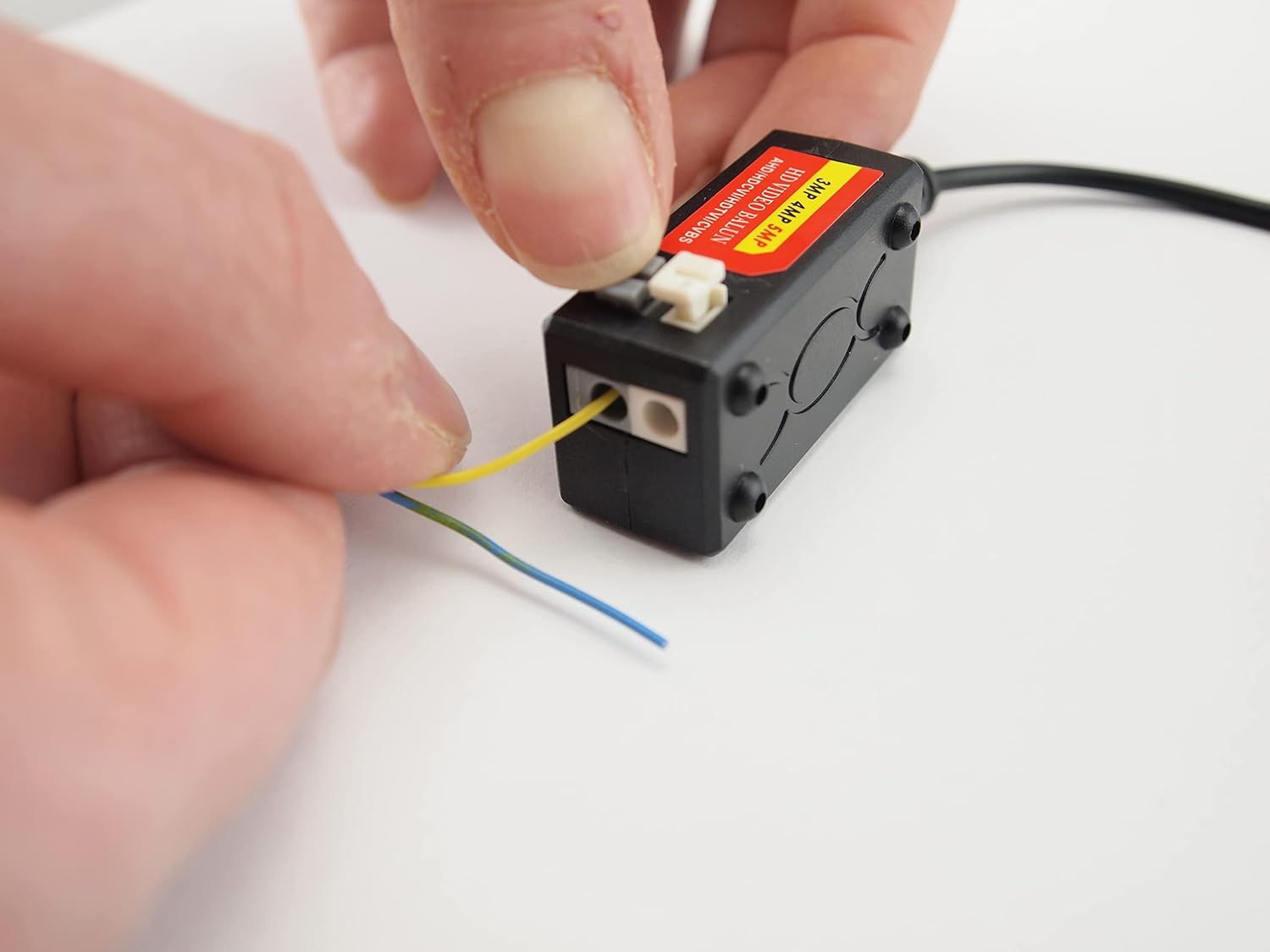

• No need to strip the wires, this 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest “Press Fit” screw free installation method, tool-less, installs in seconds, saves your time, makes the installation work more convenient!
• This 1080P HD video balun has 1000V max surge protection. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.

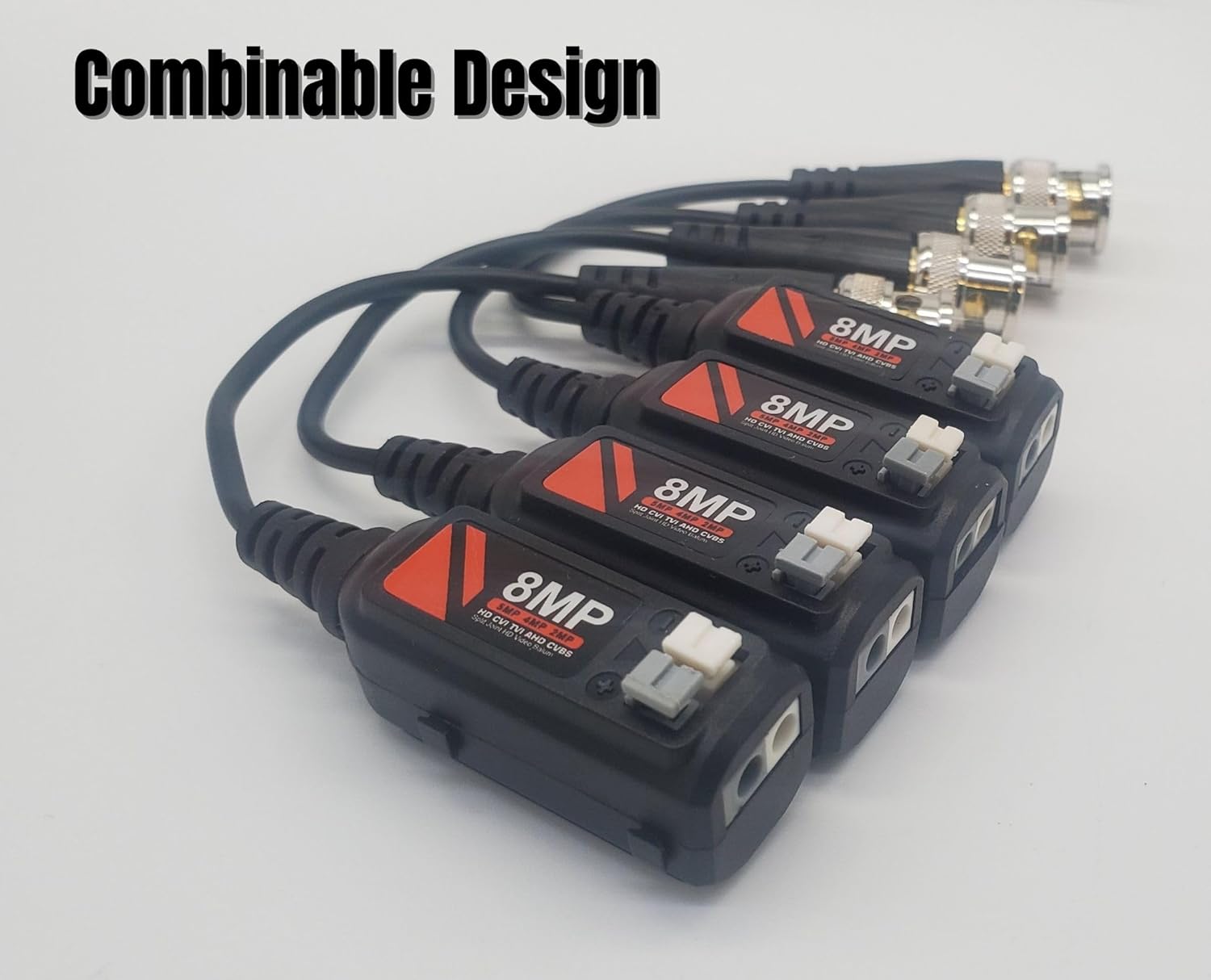

• There are 6 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used.
• Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system, gold plated BNC better transmission quality long distance HD transmitter. No power required!
