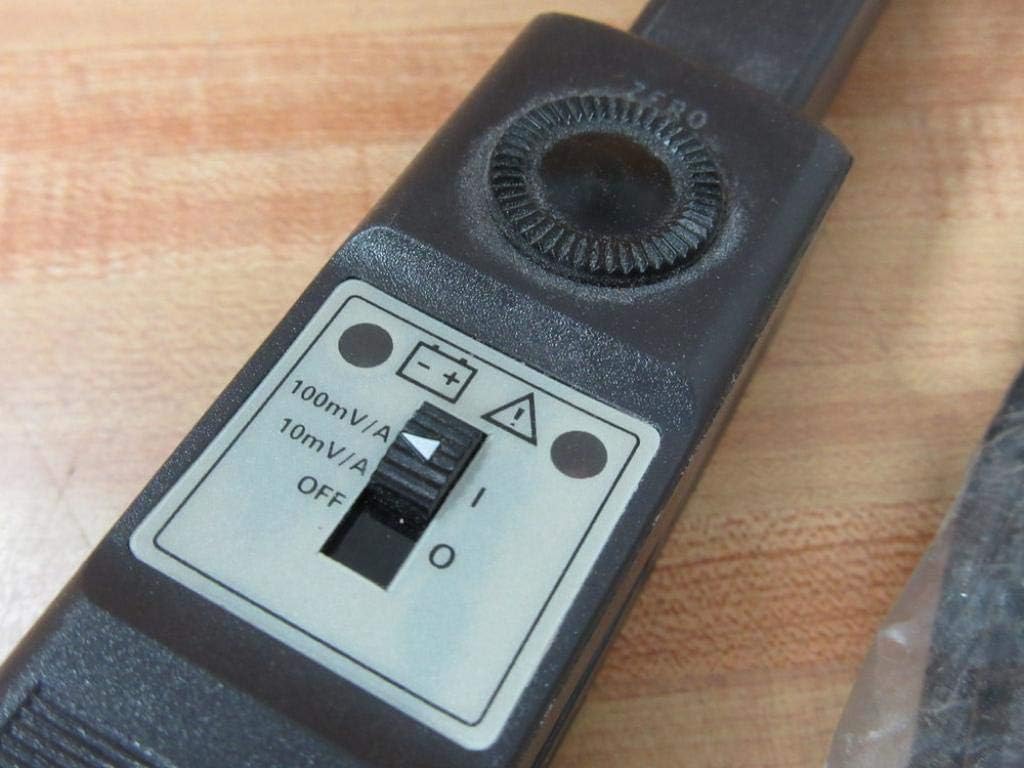

Tektronix A622 Probe, Current; 100 A (Max.); 10 mV; DCto 100 kHz; 0.46 in. (Max.); BNC
Product details
| Management number | 211725633 | Release Date | 2026/04/04 | List Price | $517.28 | Model Number | 211725633 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tektronix A622 - Current Probe (50 mA, DC: 100 A / Max RMS: 71 A / Peak Current: 100 A, 100 kHz) Maximum Current: DC: 100 Max RMS: 71 A Peak Current: 100 A Minimum Current: 50 mA Bandwidth: 100 kHz Use For DMMs and oscilloscopes This "long nose" style clamp-on probe uses a Hall Effect current sensor to provide a voltage output to oscilloscopes. It has a BNC connector and can be used with a shrouded banana plug adapter1 so it can also be used on digital multimeters, TekMeter, and oscilloscopes. The A622 can measure AC/DC currents from 50 mA to 100 A peak over a frequency range of DC to 100 kHz. It provides 10 mV or 100 mV output for each Amp measured.
- Maximum Current: DC: 100
- Max RMS: 71 A
- Peak Current: 100 A
- Minimum Current: 50 mA
| Model | A622 |
|---|---|
| Brand Name | Tektronix |
| Unit Count | 1.0 Count |
| Item Weight | 2 Pounds |
| Manufacturer | TEKTRONIX INC |
| Power Source | See Product Details |
| Item Dimensions | 11.5 x 6.5 x 2 inches |
| Specification Met | Ul, Csa, En, Iec |
| Included Components | A622 |
